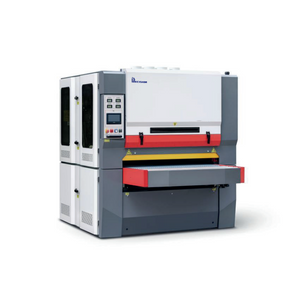

Double wide belt sanding machine | |
1, Suit for solid wood board sanding work 2,Whole machine used weld frame structure ,stable and high precision 3, Big diameter roller ,high precision with high frequency work 4,Multi safety guarantee . | |
Model | PRS2613A |
1.Sanding board width | 40-1300mm |
2.Sanding board thickness | 5-150mm |
3,Sanding board length | ＞500mm |
4.Abrasive belt speed | 25m/s |
5.Size of sanding belt | 1350*2800mm |
6.Main power | 75KW X 2 |
7.Transport reducer | 11 kw |
8.feeding speed | 20-40m/s |
9.Lifting motor | 0.75kw |
10.brushing motor | 0.37kwX 2 |
11.Total motor | 163kw |
12.Operating pressure | 0.6~0.8MPa |
13.Dust extraction | 24000m³/h |
14.Speed of suction extraction | 25`30m/s |
15 Capacity | 200 pc/hour |
16.Dimension | 2100 *3400*3050mm |
17 .Weight | 10000kg |
